Inverto’s airstream Live™ Gateway is a cost-effective DVB-NIP compatible satellite receiver designed to receive content distributed over broadcast satellites using Inverto’s airstream Live content distribution solution. The airstream Live™ Gateway features a DVB-S2X front end and supports content delivery over GSE HEM or DVB-MPE transport streams.
It receives live ABR video streams or any other type of media files including VoD, documents and data files over multicast streams and publish the content over a built-in web server. The airstream Live Gateway features a LAN port and a WLAN Access Point to stream the content to mobile devices directly or through a companion airstream Live Edge server when a larger number of end users’ mobile devices shall be supported at the same time.
In addition, the airstream Live™ Gateway can decode the live mABR TV streams and display over a TV screen using its HDMI and analogue A/V ports. The airstream Live Gateway features a USB2.0 port for connecting an optional local storage.
It receives live ABR video streams or any other type of media files including VoD, documents and data files over multicast streams and publish the content over a built-in web server. The airstream Live Gateway features a LAN port and a WLAN Access Point to stream the content to mobile devices directly or through a companion airstream Live Edge server when a larger number of end users’ mobile devices shall be supported at the same time.
In addition, the airstream Live™ Gateway can decode the live mABR TV streams and display over a TV screen using its HDMI and analogue A/V ports. The airstream Live Gateway features a USB2.0 port for connecting an optional local storage.
Additional applications:
- Access free-to-air satellite mABR TV streams
- Built-in dual band Wi-Fi Access Point
- Local storage over USB 2.0 port (optional)
- DVB-S2X, DVB-NIP compatibility
- Reception of mABR video streams, VOD and generic data files over GSE HEM or DVB-MPE transport stream
- Content distribution to connected devices over LAN/WLAN
- Scalable distribution to a large number of connected devices using an airstream Live Edge server
- Available as SDK for integration into 3rd-party mobile apps and STBs

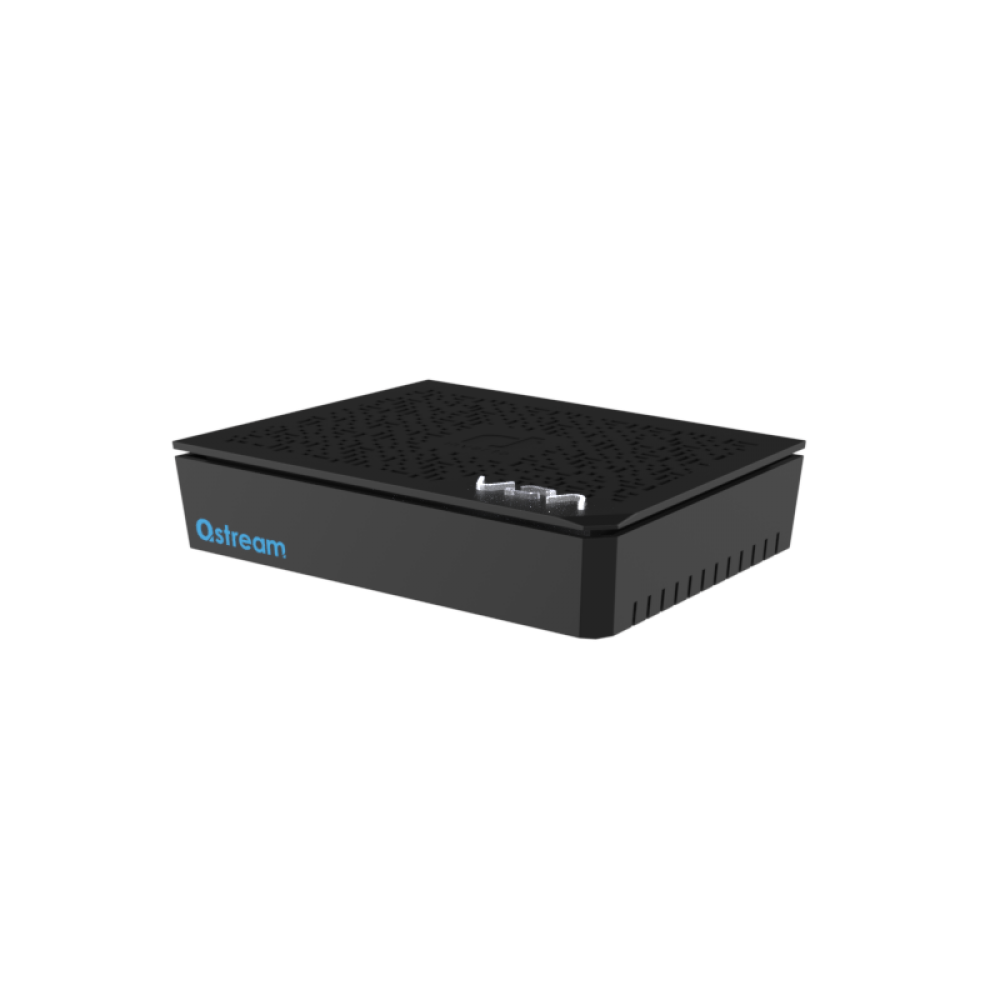

*Product image is for illustration purpose, actual product may look different depending on availability.
Minimum technical specifications
Minimum technical specifications
| SoC | Montage Symphony4, 2-core Cortex-A7 (ARM) 32-bit SoC, up to 1.2GHz |
| Decoding | HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1/VP8/VP9 HD decoding |
| HEVC Main Profile@Level 4.1 and Main 10 Profile @L4.1, High tier, VP8 2K@30fps, VP9 2K@60fps profile 0 and profile 2, MPEG2 MP@ML/HL | |
| DDR | 256MB DDR3 |
| External storage | USB 2.0 |
| Wi-Fi | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless LAN |
| LAN | 10/100 Mbps |
| Display | HDMI (analog A/V jack port optional) |
| Satellite input | 1x DVB-S/S2/S2X front end, female F-connector, 950-2150 MHz |
| Wireless connected devices |
Up to 3 simultaneous connections over the built-in WLAN access point Optional scaling and extended coverage over an external Inverto OneNet PROx MESH Wifi6 Router |
| Power | 12Vdc, 1.5A |
| File formats | ABR files - Apple HLS, MPEG-DASH, CMAF |
| Generic files – documents, firmware, video, audio, data | |
| IP Protocols | HTTP, HTTPS, Multicast, Unicast, RTP, RTSP, RTMP, FLUTE, DVB-HB |
| DVB Transport Stream protocols - | GSE HEM, DVB-MPE |
| Containers | MPEG TS, MP4, RAW RTP H.264/AAC/OPUS, FLV |
| Options (redesign required) | 1x LTE modem with integrated SIM reader for internet connectivity |
| 1x DVB-T2 receiver for free-to-air digital TV |
The following diagram describes the system architecture for online education projects
