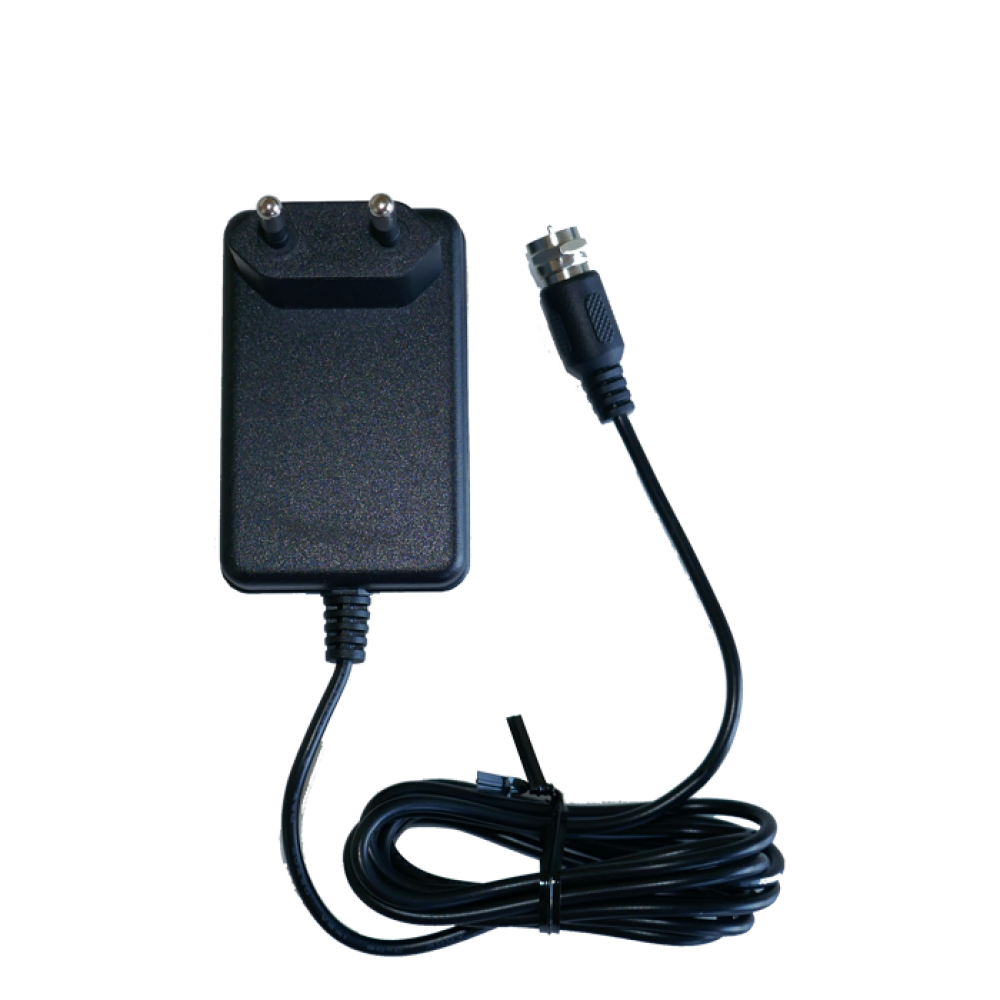

This power supply adapter can be used to operate a Unicable II™ multiswitch with two or four output ports and connected Quattro LNB (or two Wideband LNBs). It features over current and short protection and is ideal for single home/apartment installations.
| Technical specifications | |
|---|---|
| Input voltage | 100 VAC ~ 240 VAC |
| Input frequency |
50 Hz/60 Hz |
| Output voltage |
19 VDC |
| Output current |
0.94 A max. |
| Output connector |
F-type (male) |
| Cable length (DC) |
1.5 m |
| Product dimensions (L x W x H) |
7 cm x 4.8 cm x 6 cm |
| Working temperature |
0 °C ~ +40 °C |
| Weight |
150 g |
| Compliance |
Low Voltage Directive (2014/35/EU) Electromagnetic Compatibility Directive (2014/30/EU) Eco-Design Directive (2009/125/EC) |
| Logistical info | |
| Packaging dimensions (h x w x d) |
9.1 cm x 7 cm x 5 cm |
| Packaging weight |
0.134 kg |
| Quantity per carton |
100 pcs |
| Carton dimensions (W x D x H) |
55.5 cm x 39.5 cm x 36.5 cm |
| Carton weight |
16 kg |
| Quantity per pallet |
1600 |
Images

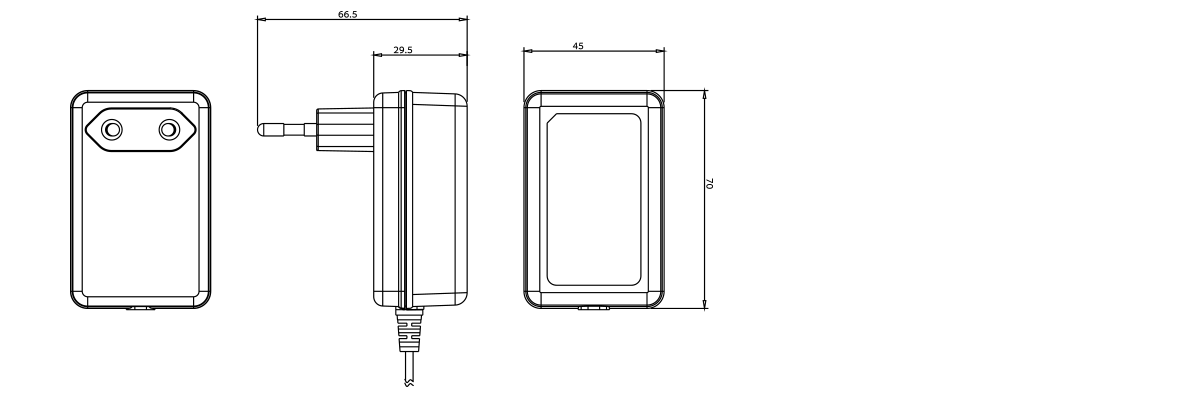

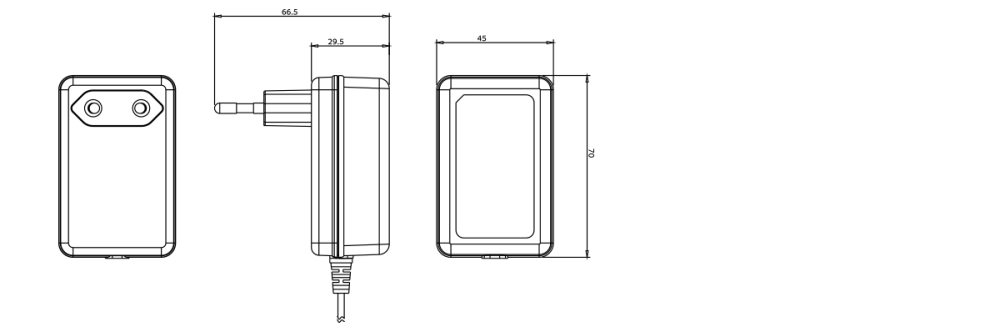

Drawings
