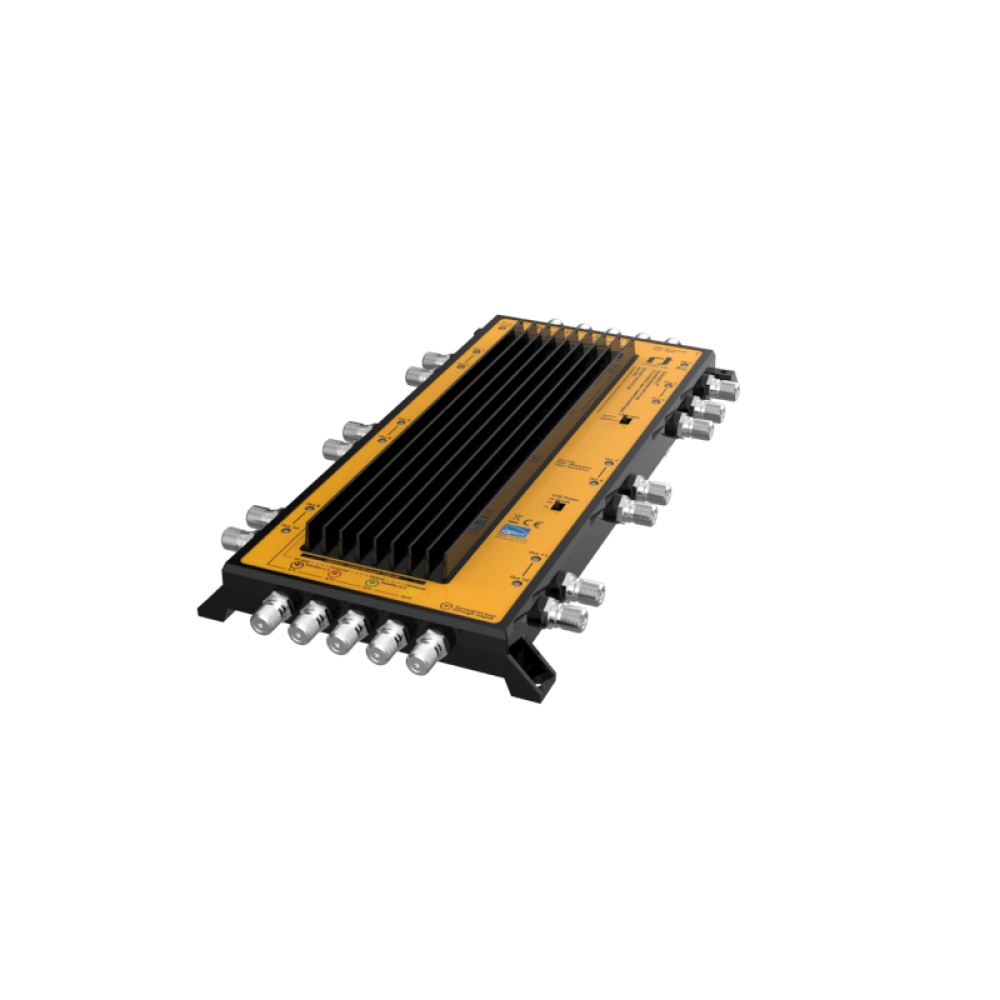

This Multiswitch unit connects to a Quattro or Wideband LNBs and offers a terrestrial input port to connect a terrestrial antenna and enable the distribution of satellite TV as well as DTT/DAB broadcasts at MDU/IRS installations. A manual switch selects whether the satellite inputs connect to a Quattro LNB or up to two Wideband LNBs for receiving up to two full satellite broadcasts. The loop-through trunk ports can be connected to cascade additional Multiswitch units.
The DC-input port of the Multiswitch unit powers the trunk lines which power the connected LNB and the built-in Terrestrial amplifier of the unit and of any other cascaded units. The Trunk power LED will turn green when the Trunk lines are powered.
The output ports are powered by the connected STBs enabling super low power consumption from the trunk lines and powering as many cascaded switches as possible using a single power supply unit. If a connected STB is not able to power its respective port, a power inserter can be utilized. The Multiswitch features a manual switch allowing to power the trunk lines from the STB ports. If the connected STBs are not able to provide sufficient power, a power inserter can be utilized. This is useful in installations having no power supply available next to the Multiswitch unit in order to power its trunk lines and the connected LNB via the DC-in port.
Each of the eight STB output ports supports either Legacy or Unicable mode (auto-detect). The Unicable mode is compatible with either SatCR (Unicable, EN50494) or dCSS (Unicable II, EN50607) STB models and delivers 16 User Bands. The ports feature a status LED indicating their operational mode:
- Solid green = Legacy mode
- Blinking green = dCSS or SatCR mode
- Off = no voltage detected on the port (only terrestrial signal available on the port when the unit is powered)
All the eight STB output ports combine the Terrestrial input with unity gain.
For Indoor and outdoor (IP54) installations.
The DC-input port of the Multiswitch unit powers the trunk lines which power the connected LNB and the built-in Terrestrial amplifier of the unit and of any other cascaded units. The Trunk power LED will turn green when the Trunk lines are powered.
The output ports are powered by the connected STBs enabling super low power consumption from the trunk lines and powering as many cascaded switches as possible using a single power supply unit. If a connected STB is not able to power its respective port, a power inserter can be utilized. The Multiswitch features a manual switch allowing to power the trunk lines from the STB ports. If the connected STBs are not able to provide sufficient power, a power inserter can be utilized. This is useful in installations having no power supply available next to the Multiswitch unit in order to power its trunk lines and the connected LNB via the DC-in port.
Each of the eight STB output ports supports either Legacy or Unicable mode (auto-detect). The Unicable mode is compatible with either SatCR (Unicable, EN50494) or dCSS (Unicable II, EN50607) STB models and delivers 16 User Bands. The ports feature a status LED indicating their operational mode:
- Solid green = Legacy mode
- Blinking green = dCSS or SatCR mode
- Off = no voltage detected on the port (only terrestrial signal available on the port when the unit is powered)
All the eight STB output ports combine the Terrestrial input with unity gain.
For Indoor and outdoor (IP54) installations.
Optional accessories (sold separately):

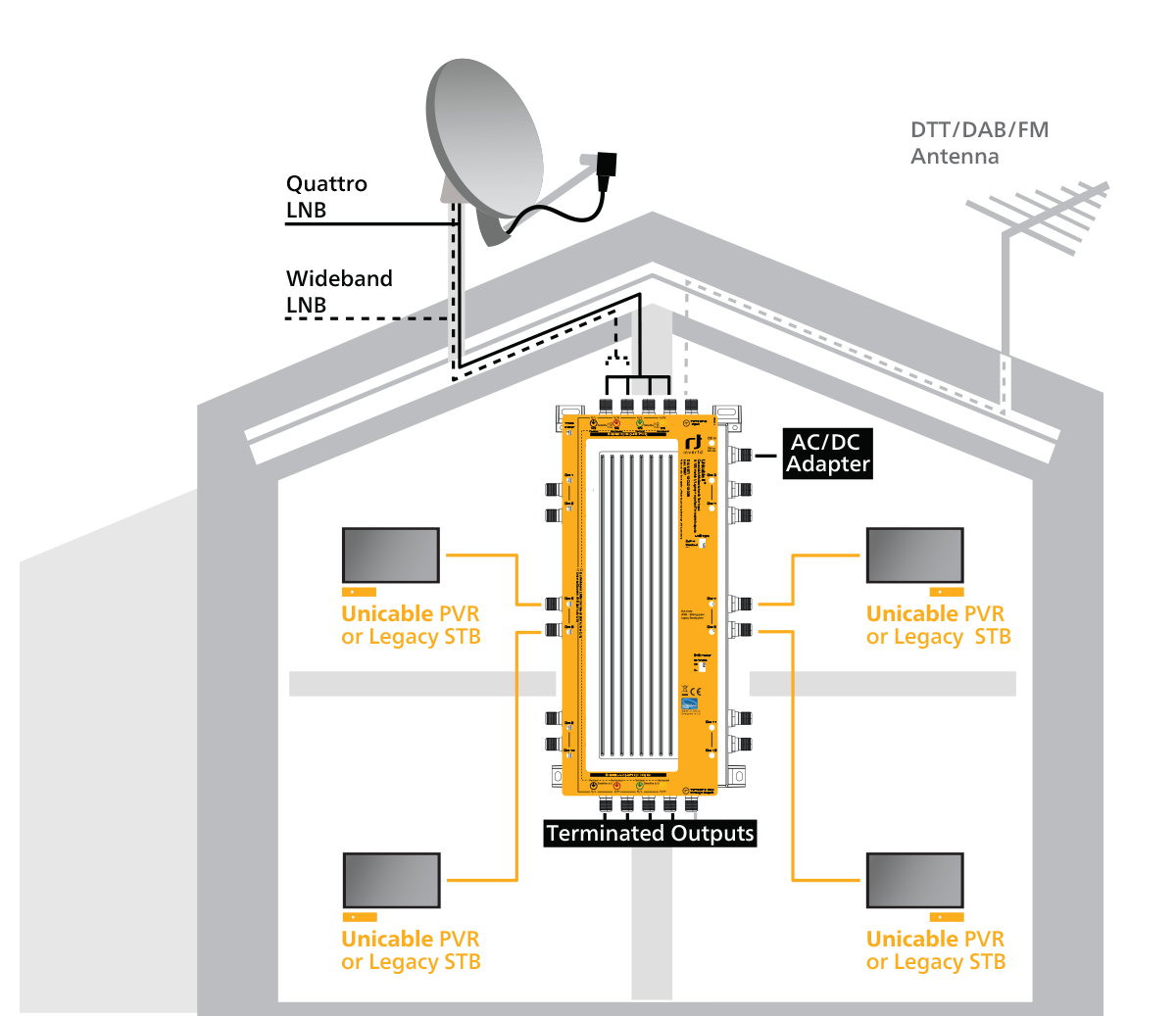

Typical single household installation

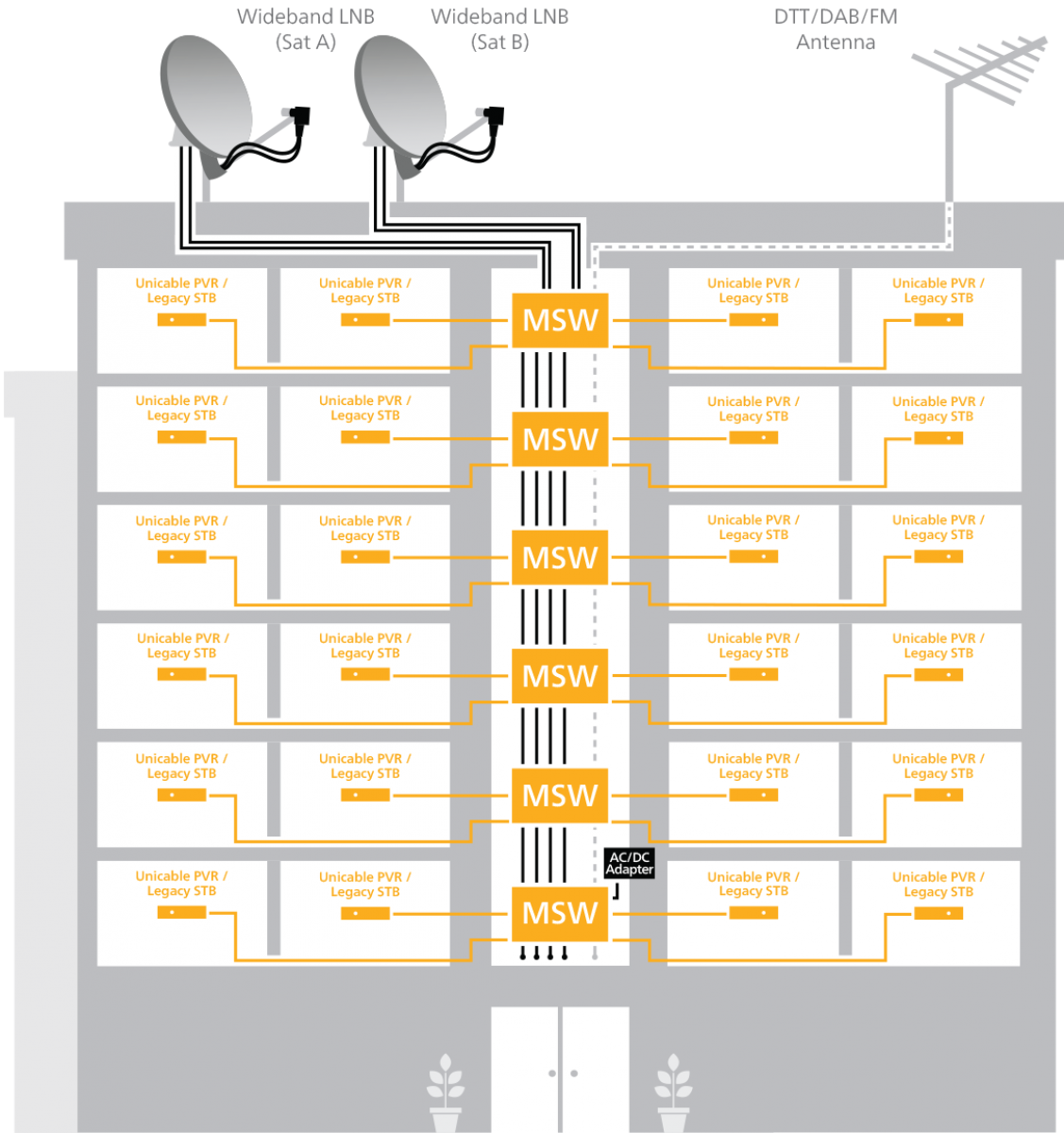

Typical MDU/IRS building installation with two Wideband LNBs receiving two satellites
If sky service is required to be distributed, it should be connected over the Sat A position
Typical MDU/IRS building installation with two Wideband LNBs receiving two satellites
If sky service is required to be distributed, it should be connected over the Sat A position
| Technical specifications | |
|---|---|
| Frequency range -Satellite |
Quattro LNB: 950 MHz ~ 2150MHz Wideband LNB: 290 MHz ~ 2350MHz (LO=10.41 GHz) |
| Frequency range - Terrestrial |
VHF 174-230 MHz UHF 470-790 MHz |
| Inputs (F-type connectors) |
4x Satellite IF inputs: From 1x Quattro LNB or From up to 2x Wideband LNBs 1 x DTT/DAB input from Terrestrial antenna |
| Trunk outputs (F-type connectors) |
4 Satellite IF + 1 TERR 12 x dCSS (16 UBs) / SatCR / Legacy auto-detect ports with combined Terrestrial signal ports with combined Terrestrial signal |
| Tap output ports (F-type connectors) |
12 x dCSS (16 UBs) / SatCR / Legacy auto-detect ports with combined Terrestrial signal |
|
|
|
| Trunk DC pass - Satellite | Yes |
| Trunk DC pass - Terrestrial | No |
|
|
|
| Trunk max through-loss - Satellite | 6 dB max. |
| Trunk max through-loss - Terrestrial | 0 ±1 dB gain |
|
|
|
| Gain (Tap) - Satellite Out of AGC | >25 dB |
| Gain (Tap) - Satellite AGC | -25 dB to +27 dB |
| Gain (Tap) - Terrestrial | -2 ~ +3 |
|
|
|
| TERR IIP3 | 10 dBm min. |
|
|
|
| Max Input signal level (aggregated) |
|
| Satellite | 0dBm (108dBuV) |
| Terrestrial | -20dBm (88dBuV) |
|
|
|
| Output power level (AGC) |
|
| Satellite: dCSS/Unicable - UB power |
-25 dBm (83 dBuV) ±2 dB |
| Satellite: Legacy - average TP power |
-25 dBm (83 dBuV) ±4 dB |
|
|
|
| Output level variation (input signal: single carrier at start/mid/end band freq @-20dBm) |
|
| Satellite dSCR/Unicable | <2 dB |
| Satellite Legacy: |
<10 dB |
| Satellite Trunk: |
4 dB max. |
| Terrestrial | <4 dB |
|
|
|
| Input power dynamic range (aggregated) | -32 dBm to -4 dBm (76 dBuV to 104 dBuV) |
|
|
|
| Return loss |
|
| Satellite Trunk ports | >10 dB |
| Terrestrial Trunk ports | >8 dB |
| Tap output ports: Satellite | >8 dB |
| Tap output ports: Terrestrial | >8 dB |
|
|
|
| Isolation: Trunk port to port | >30 dB |
| Isolation: Trunk port to Tap port | >26 dB |
|
|
|
|
|
|
|
|
|
| Integrated phase noise | 1.5 degrees max. |
|
|
|
| User bands per port | 16 |
| dSCR/SatCR/Legacy mode indication | LED |
|
|
|
| Control protocols |
Unicable I® (SatCR) /Unicable II® (dCSS) DiSEqC 1.x/2.0 EN50949/EN50607 13/18VDC + 0/22kHz Legacy/dCSS auto switching |
| Input/Output impedance | 75 ohm |
|
|
|
| Power supply |
|
| via DC in / SAT Trunk | 19 VDC |
| via Tap ports |
13/18 VDC |
| Power from DC-in to Trunk |
Yes |
| Power from STB ports to Trunk |
On/Off switch |
| LNB power supply | 500 mA max. @ 18 VDC |
| Power consumption |
Output port: 300mA (12 UBs) / 365mA (32UBs) max. @11-20V DC, (supplied by the connected STB) DC in / Trunk port: 100mA max. @18V DC (no LNB load) |
| Power indication |
DC-in / Trunk / STB LEDs: >11.5V Green <11.5V Red |
| Earth terminals | Yes |
|
|
|
| Working temperature | -20 °C ~ +50 °C |
| IP protection | IP54 |

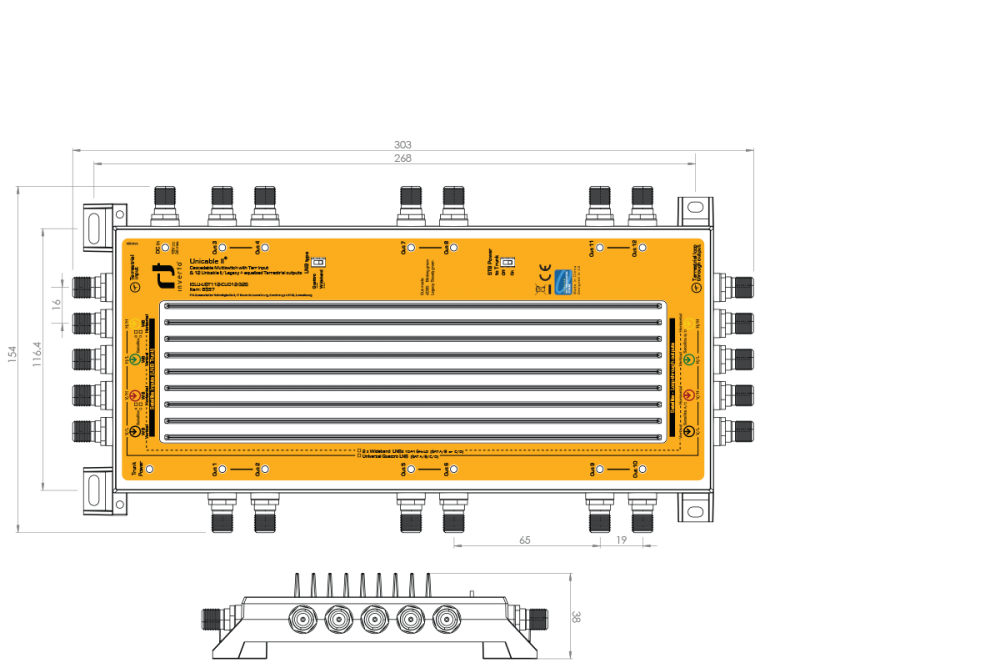

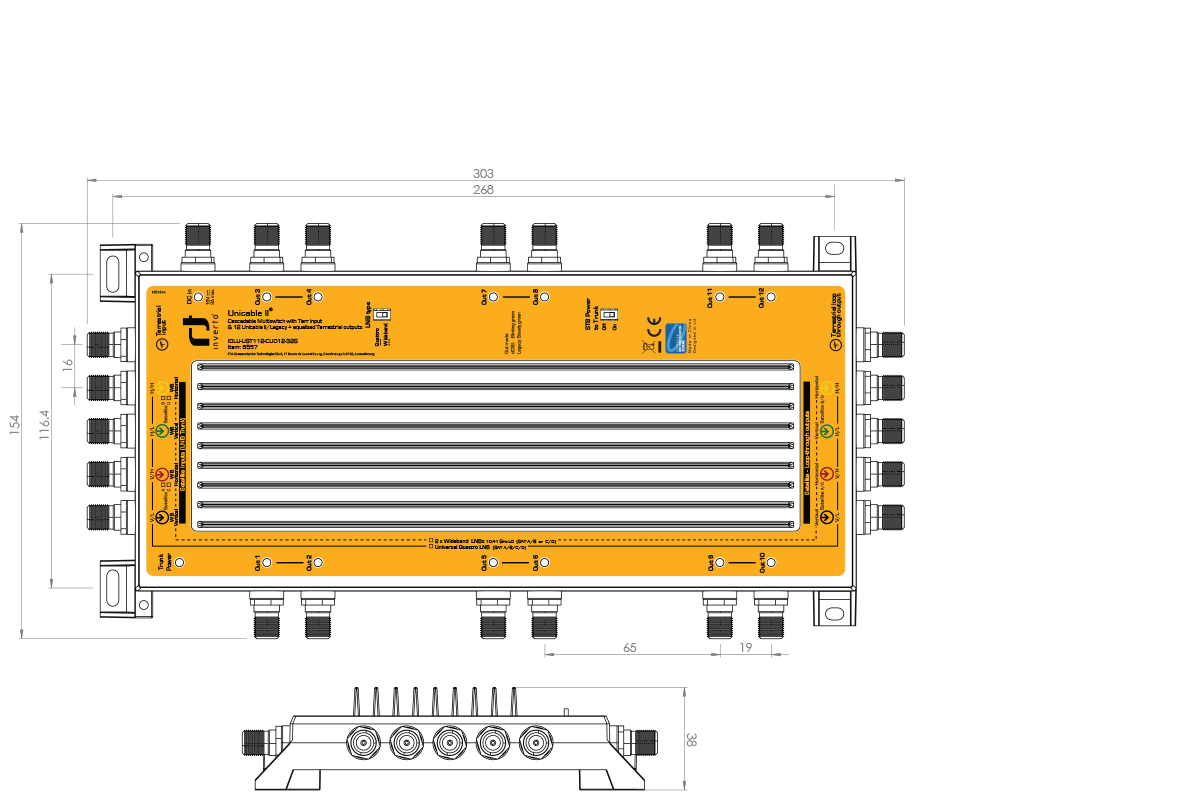

| Product dimensions (W x D x H) | 30.3 cm x 15.4 cm x 3.8 cm |
| Weight | 896 g |
| Unicable II™ (dCSS) port specifications | |
| User band (channel) bandwidth | 46 MHz, programmable 10 MHz ~ 80 MHz |
| User band (channel) gain ripple | 3 dB max. |
| User band (channel) frequencies | Default Unicable II™ dynamic user bands per output port: |
| CH1: 1210MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH2: 1420MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH3: 1680MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH4: 2040MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH5: 985MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH6: 1050MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH7: 1115MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH8: 1275MHz EN50607+EN50494 (dCSS+SatCR) | |
| CH9: 1340MHz EN50607 (dCSS) | |
| CH10: 1485MHz EN50607 (dCSS) | |
| CH11: 1550MHz EN50607 (dCSS) | |
| CH12: 1615MHz EN50607 (dCSS) | |
| CH13: 1745MHz EN50607 (dCSS) | |
| CH14: 1810MHz EN50607 (dCSS) | |
| CH15: 1875MHz EN50607 (dCSS) | |
| CH16: 1940MHz EN50607 (dCSS) | |
|
|
|
| * Unused ports need to be terminated by 75 Ohm DC-blocked terminators | |
| Logistical info | |
| Packaging dimensions (W x D x H) | 31.5 cm x 15.7 cm x 4.2cm |
| Packaging weight | 0.93Kg |
| Quantity per carton | 15 |
| Carton dimensions (W x D x H) | 49 x 33 x 23.8 cm |
| Carton weight | 14.88kg |
| Quantity per pallet | 240pcs |
