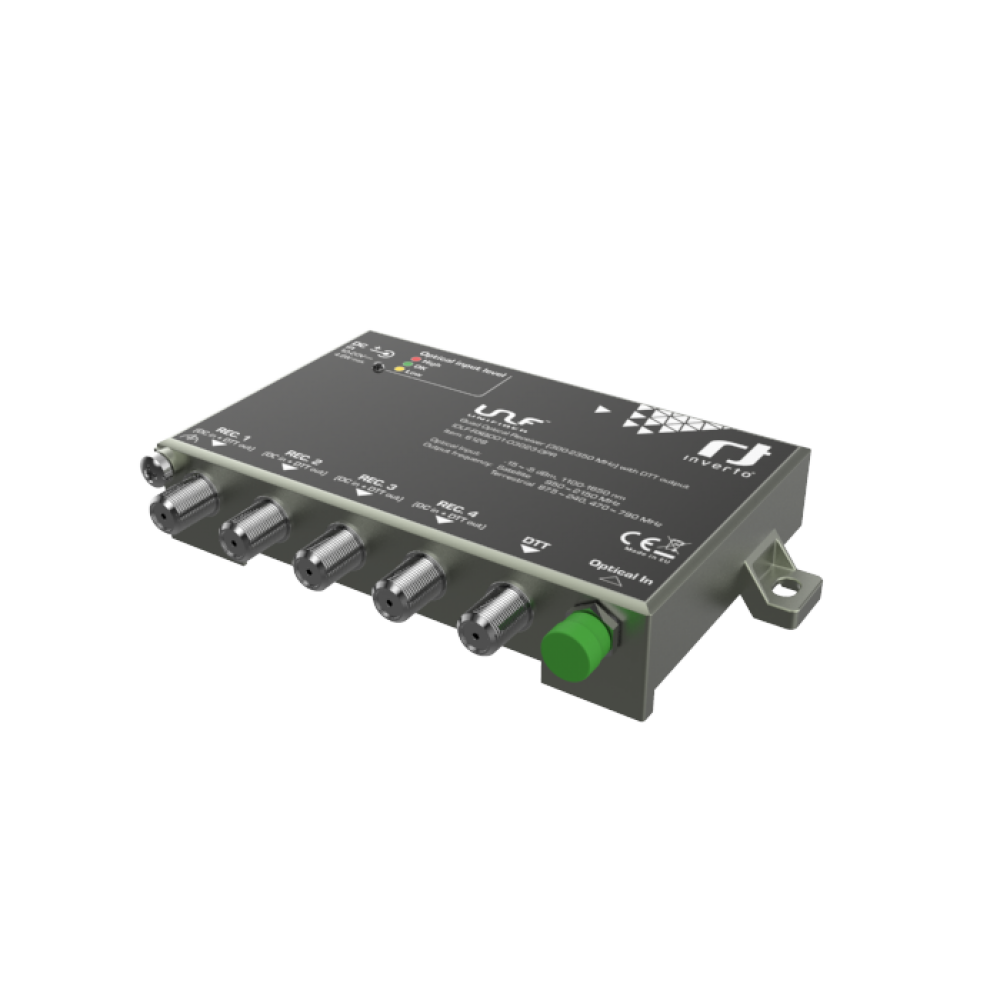

The Unifiber Quad optical receiver connects to an Inverto's Unifiber optical transmitter over a fiber passive-optical-network to receive satellite and terrestrial signals combined over a single fiber cable. A status LED helps installers to validate the power of the optical signal and guarantee the quality of the RF signals at the outputs of the receiver. This Quad receiver features four satellite universal ports (each with combined DTT signal) and an independent DTT port supporting all FM, DAB and DTT broadcasts. The receiver can be powered via the STBs that are connected to the satellite output ports or through an external power supply via the DC in port. Its power saving mode when universal ports are inactive and its compact housing makes it ideal for indoor fiber-to-the-home installations.

Main Features:
  • Optical Quad receiver with independent Wideband and DAB/DTT outputs (UK version)
  • Built-in high dynamic range optical AGC (-15~-5dBm) increasing signal quality
  • 4 independent Universal ports with combined DTT signal and power saving mode
  • Optical wavelength 1100-1650 nm, compatible with Inverto's Unifiber transmitters
  • Quick and easy install, powered from external power supply or satellite ports
  • Compact, robust die-cast housing, for indoor installations (IP54)

Technische Daten

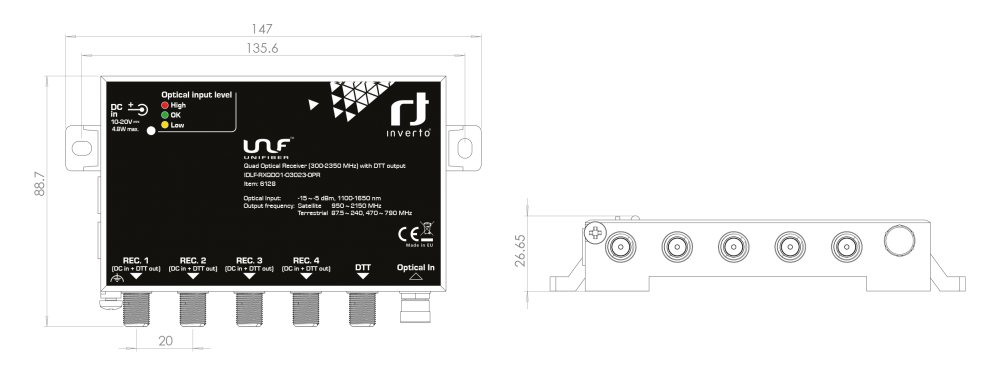

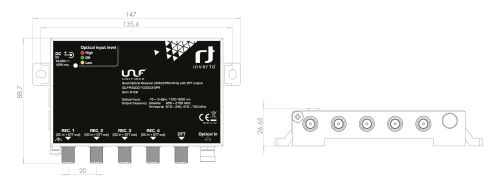

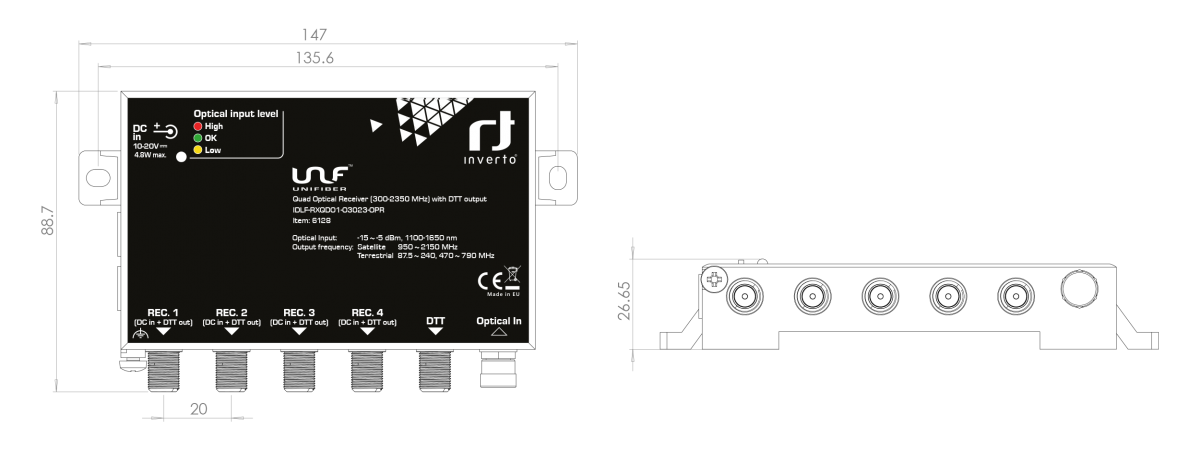

Gehäuseabmessungen (B x T x H) F-Typ (w)
Technical specifications

Satellite wideband outputs

Daten für Logistik
Abmessungen Verpackung (L x B x H) 16.4 x 10.2 x 3.1 cm
Gewicht Verpackung 0.4 kg
Stückzahl per Karton 20 pcs
Abmessungen Karton (L x B x H) 33.9 x 32.2 x 12.2 cm
Gewicht Karton 8 kg
Stückzahl per Palette 1200 pcs
