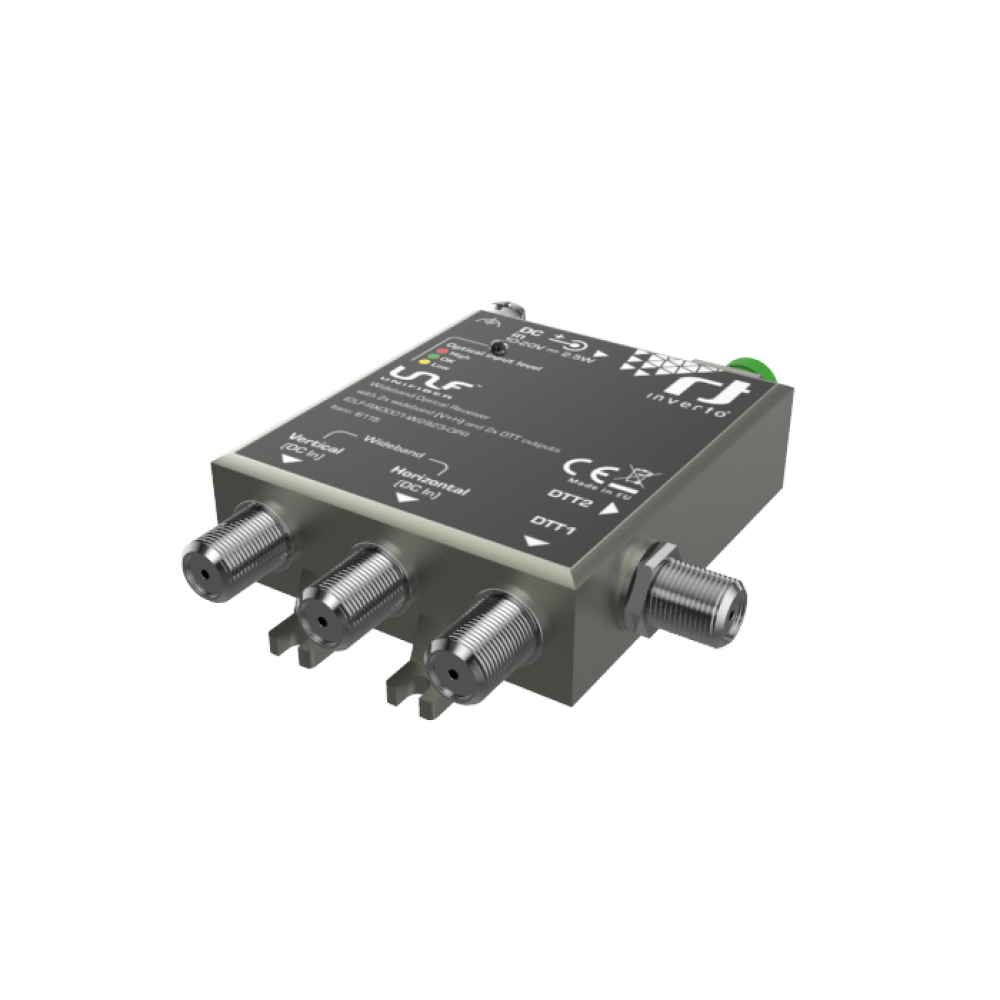

The Unifiber Wideband optical receiver connects to an Inverto's Unifiber optical transmitter over a fiber passive-optical-network to receive satellite and terrestrial signals combined over a single fiber cable. A status LED helps installers to validate the power of the optical signal and guarantee the quality of the RF signals at the outputs of the receiver. The receiver features two wideband ports (vertical and horizontal) and an independent DTT port supporting all FM, DAB and DTT broadcasts. The receiver can be powered via the satellite output ports or through an external power supply via the DC in port. The compact and robust die-cast housing makes it ideal for indoor riser/shaft fiber-to-the-building installations distributing one or more satellites through in-building coax network as well as for SkyQ fiber-to-the-home installations.

Main features

  • Optical Wideband receiver with 2x independent DAB/DTT outputs
  • Built-in high dynamic range optical AGC (-15~-5dBm) increasing signal quality
  • Optical wavelength 1100-1650 nm, compatible with Inverto's Unifiber transmitters
  • Wideband frequency range 290 ~ 2350 MHz
  • Quick and easy install, powered from external power supply or satellite ports
  • Compact, robust die-cast housing, for indoor installations (IP54)

Technische Daten

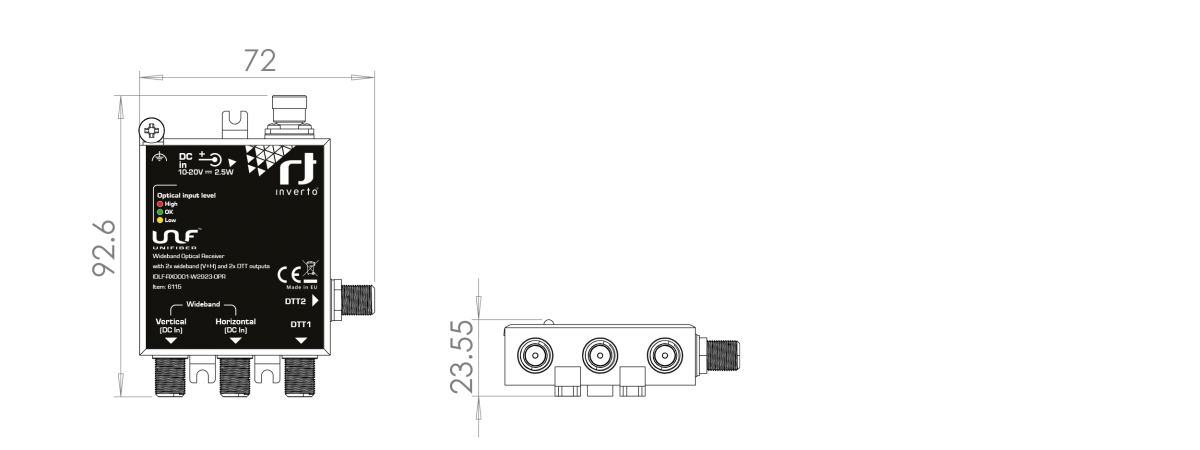

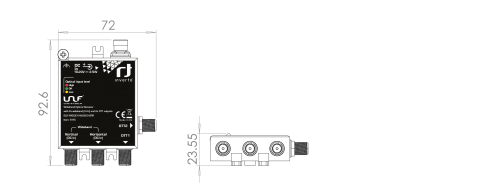

Gehäuseabmessungen (B x T x H) F-Typ (w)
Technical specifications

Satellite wideband outputs

Daten für Logistik
Abmessungen Verpackung (L x B x H) 3.3 x 12 x 9.4 cm
Gewicht Verpackung 0.2 kg
Stückzahl per Karton 20 pcs
Abmessungen Karton (L x B x H) 18.5 x 25.2 x 19.9 cm
Gewicht Karton 4 kg
Stückzahl per Palette 2160 pcs
