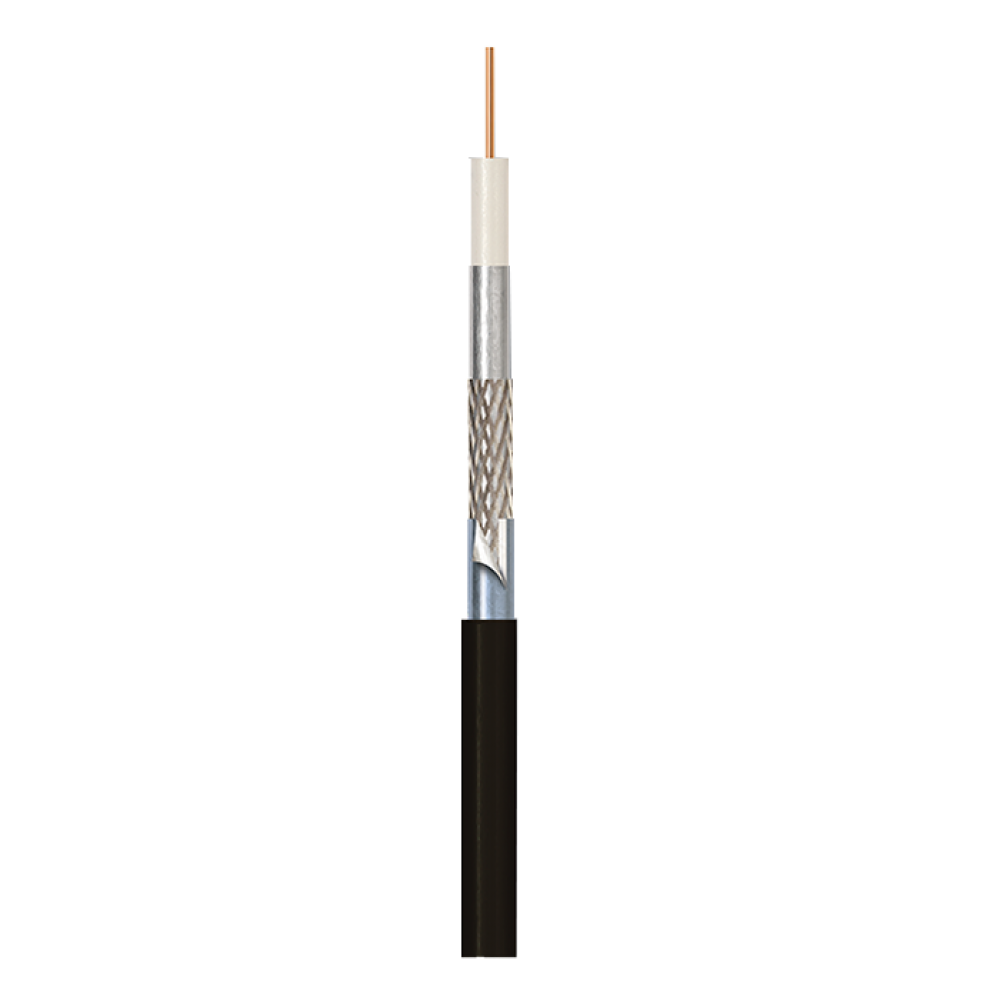

Premium 75 Ohm triple shielded coaxial cable for broadband networks HFC/CATV signal distribution. This cable is manufactured according highest quality standards and has PE gas injected dielectric with a stable impedance and fulfils in all aspects screening class A requirements. Applicable for indoor and outdoor use.







Available packages and colors:
5744 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, white, 50m roll IDLP-CRG6O5-CTWO50-RON
5745 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, black, 50m roll IDLP-CRG6O5-CTBO50-RON
5746 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, white, 100m box IDLP-CRG6O5-CTW100-BON
5747 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, black, 100m box IDLP-CRG6O5-CTB100-BON
5748 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, white, 250m plastic reel IDLP-CRG6O5-CTW250-REN
5749 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, black, 250m plastic reel IDLP-CRG6O5-CTB250-REN
5750 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, white, 305m plastic reel IDLP-CRG6O5-CTW305-REN
5751 High capacity digital coaxial cable RG-6, CCS, triple shielded, class A, black, 305m plastic reel IDLP-CRG6O5-CTB305-REN


Technical specifications
Screening class A
Applicable
indoor/outdoor

Inner conductor
Material
CCS
Diameter ᴓ [mm]
1.02
Cladding conductivity [%]
22

Dielectric

Material
PE gas injected
Diameter ᴓ [mm]
4.6

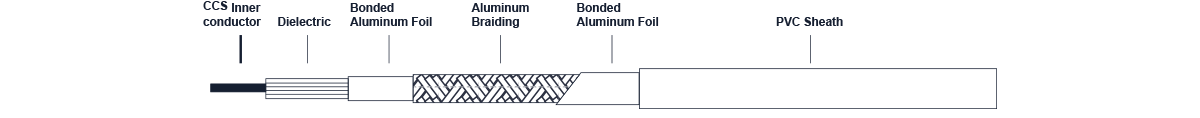

1st shielding

Material
Bonded Al/PET/Al
Overlap [%] 18

2nd shielding (braid)

Material
Al
Braid coverage [%]
65

3rd shielding

Material
Al/PET/Al foil

Outer sheath

Material
PVC
Sheath diameter ᴓ [mm]
6.8
Sheath colour
white or black
RoHS complaint
yes
Characteristics
UV protected, fire retardant,
footage marker every meter

Electrical data

Impedance [Ω]
75 ±2
Capacitance [pF/m]
53 ±2
Velocity rate [%]
83
DC resistance centre conductor [Ω/km]
92
DC resistance outer conductor [Ω/km]
24
Loop resistance [Ω/km]
116
Sheath insulation voltage [kv]
3

Attenuation [dB/100m] at 20⁰C @

5 MHz
1.9
50 MHz
4.9
100 MHz
6.55
200 MHz
10
300 MHz
12
500 MHz
15
800 MHz
19
950 MHz
21
1750 MHz
29
2050 MHz
31
2400 MHz
33.7
3000 MHz
37.5

Structural return loss [dB] @

5 MHz ~ 470 MHz
> 26
> 470 MHz ~ 1000 MHz
> 26
> 1000 MHz ~ 2000 MHz
> 22
> 2000 MHz ~ 3000 MHz
> 20

Screening attenuation [dB] @

30 MHz ~ 1000 MHz
≥ 105
> 1000 MHz ~ 2000 MHz
≥ 95
> 2000 MHz ~ 3000 MHz
≥ 85

Transfer impedance [mΩ/m] @

10 MHz ~ 30 MHz
≤ 5,0

Sweep tested @

5 MHz ~ 3000 MHz
yes

Mechanical data

Operating temperature
-30⁰C ~ +70⁰C
Installation temperature
-10⁰C ~ +50⁰C
Bending radius (single/multiple) [mm]
35/70
Tensile strength [N]
120
Weight approx. [kg/km]
42
Compliant according
EN50117,
IEC61196,
Construction Product Regulations (CPR)
Footage markers per meter
1
