The IDLU-UST110-CUO1O-32P is a small form factor Unicable2 multiswitch enabling installations with up to 32 satellite receivers over a single cable based on digital channel stacking technology. Digital channel stacking technology applies digital signal processing after wideband Analog to Digital converters (full band capture) to select and reorder transponder channels. Compared with analog channel stacking, which is based on analog frequency translation to fixed frequency slots, the digital channel stacking implementation removes the need of in-band SAW filters, offers a full flexibility of channel selection, supports many more set top boxes through a single coax cable, greatly simplifies installations at subscribers homes all at much lower cost and lower power consumption.

Controlled by the connected receivers over EN50494 or EN50607 protocol, the multiswitch will select the desired transponder channel, convert its frequency to the respective User Band frequency and stack it over the Unicable output ports through Digital to Analog converter (also known as ‘Dynamic’ mode).

The multiswitch firmware can be configured to deliver a fixed transponder-to-IF frequency mapping (also known as ‘Static’ mode) and line up to 32 transponders (depending on the bandwidth of the desired transponders) over the Unicable output ports. This allows for an unlimited number of receivers to be connected to the switch making MDU installations substantially cheaper and simpler than ever before. The operation mode - dynamic or static - output power level, channel bandwidth, UB numbers, center frequencies and the functionality of each of the output ports can all be programmed as well.

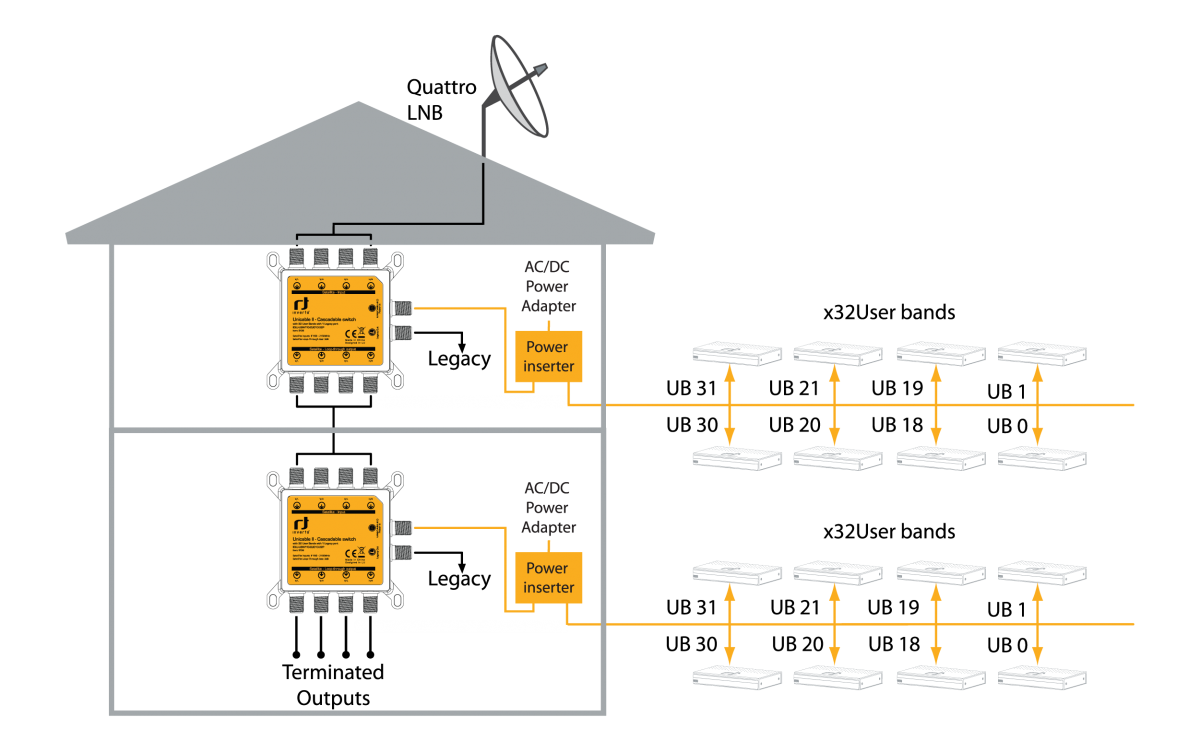

The multiswitch receives (and cascades) 4 satellite IF bands/polarities (LV, LH, HV and HH) and Terrestrial VHF/UHF signals. Both Unicable and Legacy output ports combines the Terrestrial signal. The Terrestrial signal is not amplified. The multiswitch is powered over the supplied AC/DC adapter and power inserter device allowing greater flexibility in various installation scenarios. The communication protocol between the multiswitch unit and the connected receivers is based on EN50494 and/or EN50607 and can be defined per User Band allowing operators to support installations consisting of both EN50494-only and EN50607 compatible Next Generation PVRs and HGWs.

For Indoor and outdoor (IP54) installations

* Programmer not included, sold separately as an optional accessory

Technical specifications
Frequency range: satellite 950 MHz ~ 2150 MHz
Frequency range: terrestrial 47 MHz ~ 862 MHz
Inputs 4x Satellite IF inputs from Quattro LNB
Outputs 4x Loopthrough satellite IF outputs
1x Legacy output
1x Unicable output with up to 32 User Bands
Input power range 50 dBm ~ -15 dBm
Output signal level (AGC) Configurable (default -25 dBm)
RF isolation: satellite/satellite (input) 28 dB min.
RF isolation: satellite ch/ch (UBs, output) 28 dB min.
Loop-through loss: satellite
3 dB max.
Gain: Unicable II™ (dCSS) output (out of AGC) 25 dB min.
Gain: legacy (universal) output -1 dB ~ +7 dB
LO phase noise @ 1 kHz -80 max. dBc/Hz
LO phase noise @ 10 kHz -92 max. dBc/Hz
LO phase noise @ 100 kHz -96 max. dBc/Hz
LO phase noise @ 1 MHz -104 max. dBc/Hz
Integrated phase noise 1.5° max.
Control protocols DiSEqC1.x/DiSEqC2.0, EN50494/EN50607
Legacy port switching V/L => 13 V/0 kHz, V/H => 13 V/22 kHz
H/L => 18 V/0 kHz, H/H => 18 V/22 kHz
Input/Output impedance 75 Ω (F-type)
LNB power supply 13 V/18 V, max. 300 mA
Power consumption 450 mA @ 13 VDC max.
Working temperature -30 °C ~ +60 °C
IP protection IP54

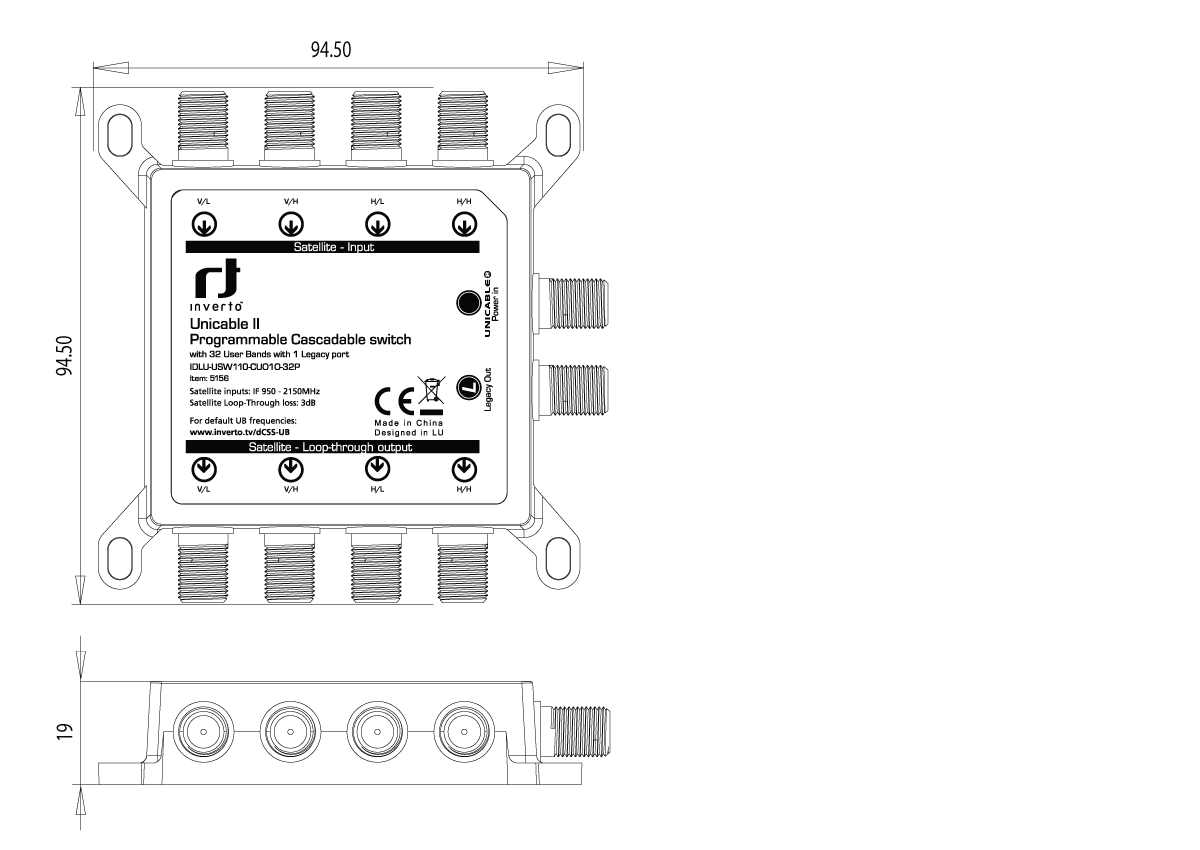

Product dimensions (W x D x H) 94.50 cm x 94.50 cm x 19 cm
Weight 120 g
Unicable II™ (dCSS) port specifications
User band (channel) bandwidth Configurable, 10 MHz ~ 80 MHz (default 36 MHz)
User band (channel) gain ripple 3 dB max.
User band (channel) frequencies Configurable; Default 32 User bands:
CH0: 1210MHz (EN50494+EN50607)
CH1: 1420MHz (EN50494+EN50607)
CH2: 1680MHz (EN50494+EN50607)
CH3: 2040MHz (EN50494+EN50607)
CH4: 984MHz (EN50494+EN50607)
CH5: 1020MHz (EN50494+EN50607)
CH6: 1056MHz (EN50494+EN50607)
CH7: 1092MHz (EN50494+EN50607)
CH8: 1128MHz (EN50607)
CH9: 1164MHz (EN50607)
CH10: 1256MHz (EN50607)
CH11: 1292MHz (EN50607)
CH12: 1328MHz (EN50607)
CH13: 1364MHz (EN50607)
CH14: 1458MHz (EN50607)
CH15: 1494MHz (EN50607)
CH16: 1530MHz (EN50607)
CH17: 1566MHz (EN50607)
CH18: 1602MHz (EN50607)
CH19: 1638MHz (EN50607)
CH20: 1716MHz (EN50607)
CH21: 1752MHz (EN50607)
CH22: 1788MHz (EN50607)
CH23: 1824MHz (EN50607)
CH24: 1860MHz (EN50607)
CH25: 1896MHz (EN50607)
CH26: 1932MHz (EN50607)
CH27: 1968MHz (EN50607)
CH28: 2004MHz (EN50607)
CH29: 2076MHz (EN50607)
CH30: 2112MHz (EN50607)
CH31: 2148MHz (EN50607)
* Unused ports need to be terminated by 75 Ohm DC-blocked terminators
Logistical info
Packaging dimensions (W x D x H) 9.8 cm x 9.8 cm x2.65 cm
Packaging weight 0.35 Kg
Quantity per carton 30
Carton dimensions (W x D x H) 309 cm x 210 cm x 155 cm
Carton weight 9.5 kg
Quantity per pallet 1800
