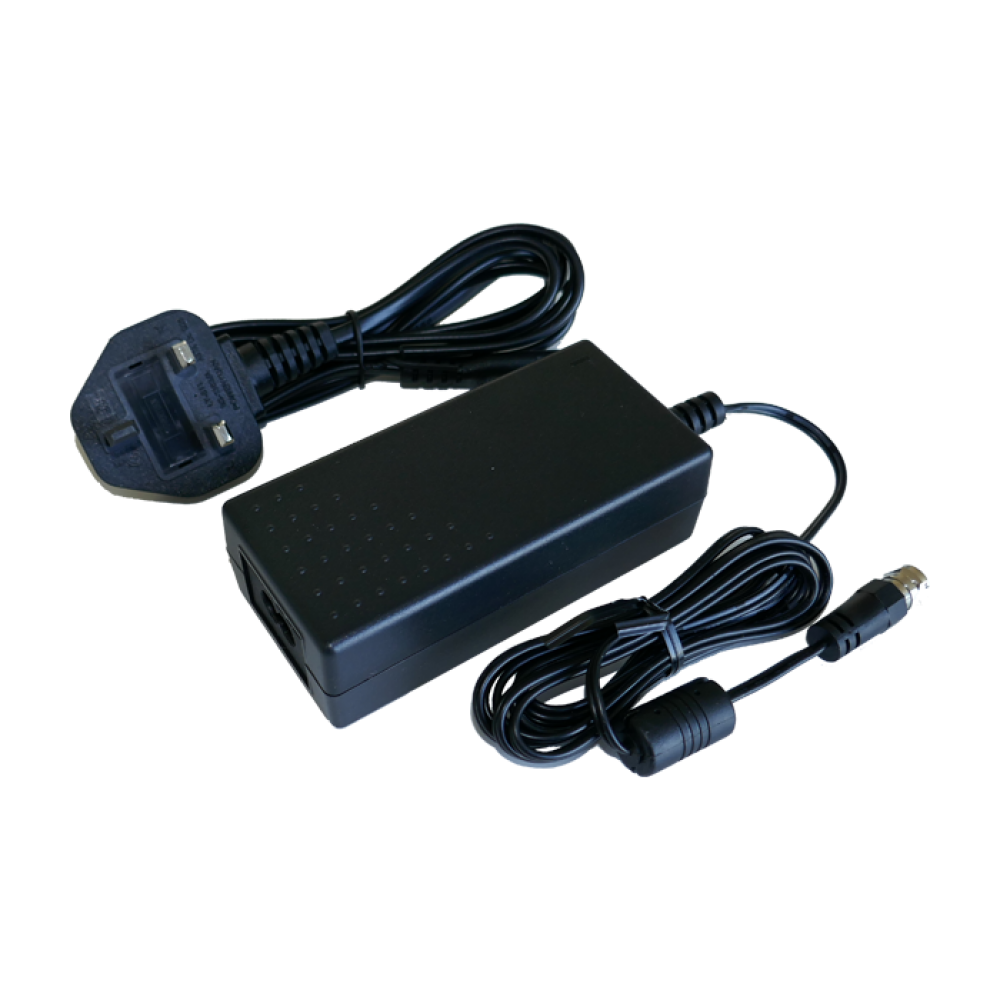

This power supply adapter is designed to power up to four cascaded units of 4-output Unicable II multiswitches or two 8-output multiswitches and the connected Quattro LNB (or two wideband LNBs) over the trunk lines or the DC input port. It features high current and over voltage protection and a built-in fuse protecting against power line surges and abnormal conditions and is ideal for building/MDU installations of cascaded systems.

Technical specifications
Input voltage 100 VAC ~ 240 VAC
Input frequency
50 Hz/60 Hz
Output voltage
19 VDC
Output current
3.42 A
Output connector
F-type (male)
Cable length (AC)
1.8 m
Cable length (DC)
1.5 m

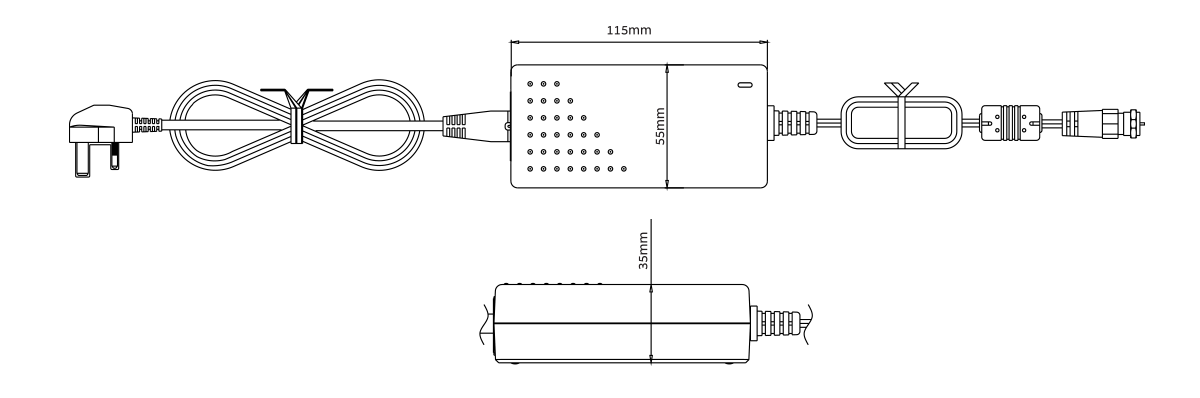

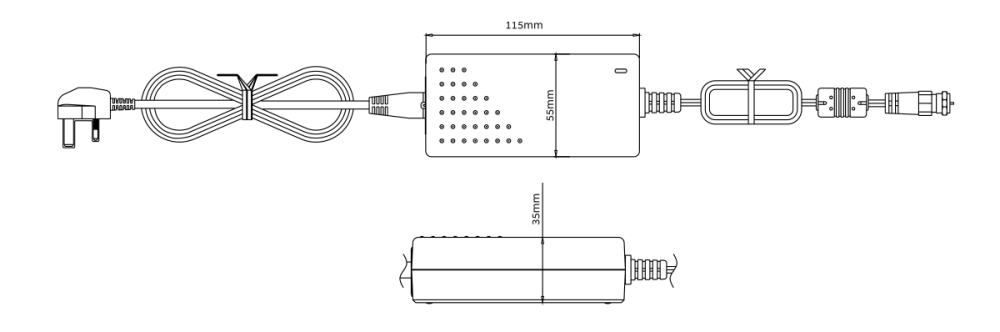

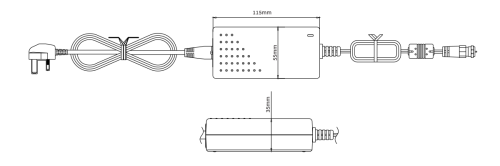

Product dimensions (L x W x H)
11.5 cm x 5.5 cm x 3.5 cm
Working temperature
0 °C ~ +40 °C
Weight
250 g
Compliance
Low Voltage Directive (2014/35/EU)
Electromagnetic Compatibility Directive (2014/30/EU)
Eco-Design Directive (2009/125/EC)
Logistical info
Packaging dimensions (h x w x d)
5.8 cm x 9 cm x 15 cm
Packaging weight
0.49 kg
Quantity per carton

50 PCS
Carton dimensions (W x D x H)
49.5 cm x 33 cm x 34.5 cm
Carton weight
24.4 kg
Quantity per pallet
700
